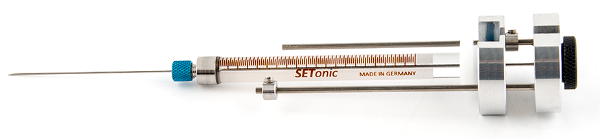

Syringe Guide for manual injection

*delivery without syringe

P/N	for use with
3070037	0.5µl - 1.0ml

SETonic Tech Tip:

• prevents bending of the plunger
• can be preset for desired volume
• prevent plunger blow out
• you need no tools for changing the syringe
• can be uses on pumps

How to use:

1. disconnect the screws
2. put the syringe in the holder
3. fix the screws
4. you can use this guide for ø6,5mm up to ø8,0mm glass barrels
5. use the appropriate screw and washer
