How to Use

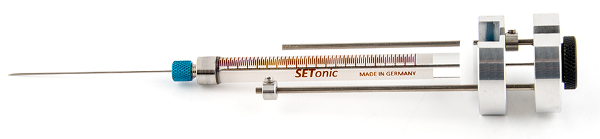

Syringe Guide for manual injection

 Syringe Guide

*delivery without syringe

P/N for use with
3070037 0.5µl - 1.0ml


SETonic Tech Tip:
• prevents the bending of the plunger
• can be preset for desired volume
• prevent the plunger blow out
• you need no tools for changing the syringe
• you can use on pumps

How to use:
• disconnect the screws
• put the syringe in the holder
• fix the screws
• you can use this guide for ø6,5mm up to ø8,0mm glass barrels
• use the appropriate screw and washer
